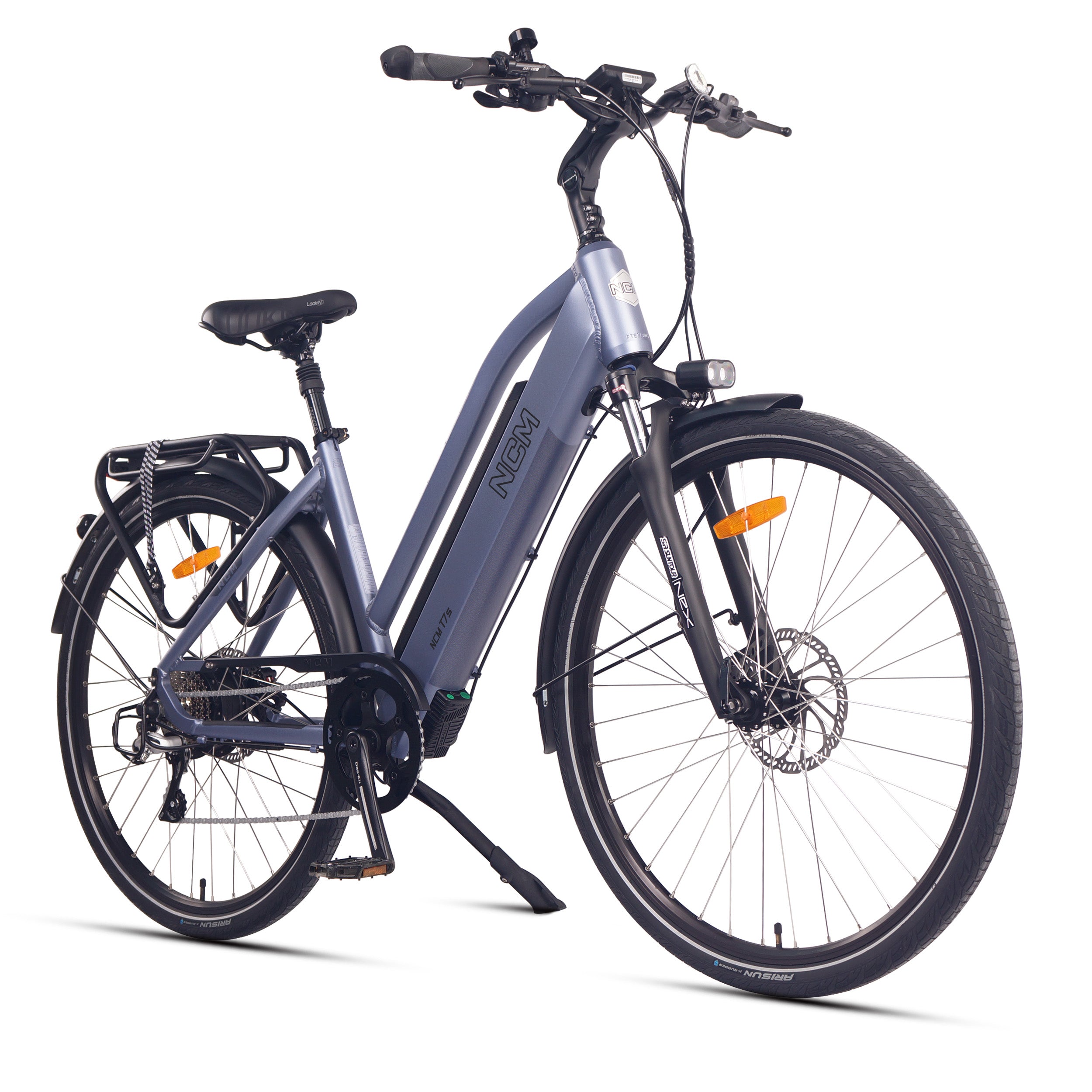

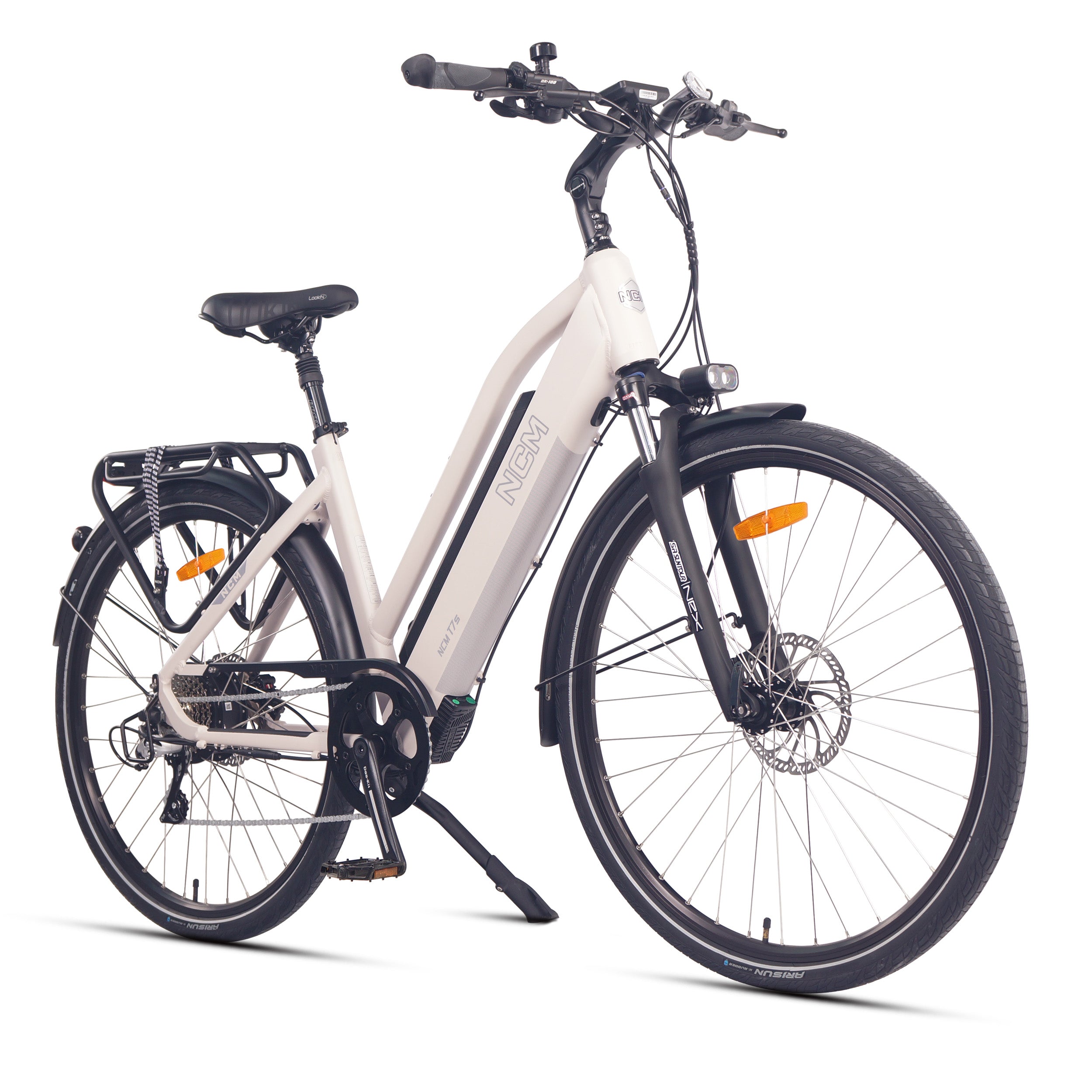

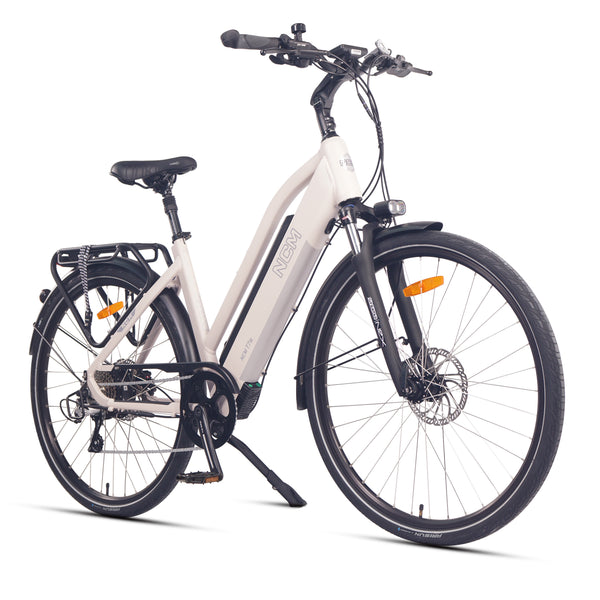

Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders who are eager to tackle longer routes alongside their daily rides and want an e-bike with the range and the integrity to help them do it.

ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology

Motor: Das-Kit, X15, rear-drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, T7, 48V 18A

Charger: Das Kit, 48V 3A

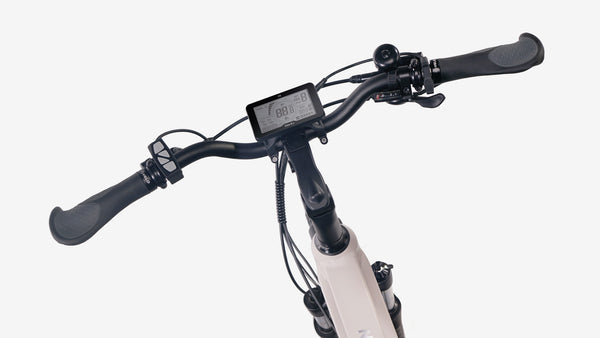

Display: Das-Kit, C8, with USB

Front Light: DH007Plus, 48V, 70Lux

BIKE COMPONENTS

Frame: Alu. 6061, 26"x420mm

Suspension Fork: RST, ANGEL-TNL 26, with hydraulic lock system, Magnesium

Brake: F: Das-Kit, hydraulic disc brake,DK-100E,180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100,180mm rotor

Freewheel: 8 Speed, 11-32T

Tyre: Schwalbe, Marathon 26x2.0

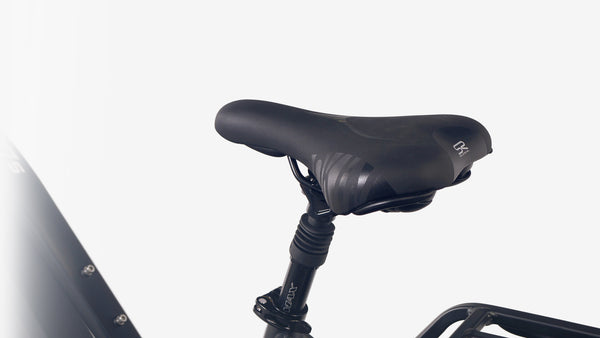

Saddle: Selle Royal, Lookin, Black

Stem: Promax, MA-579

Crank: Das-Kit, 46T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

WEIGHT

NCM T7s 26": 29.6KG

Weight (without battery): 24.8KG

Battery Weight: 4.8KG

Max Load (rider+bike): 140KG
