NCM Milano Max N8R
NCM Milano Max N8R
Click image to open expanded view

NCM Milano Max N8R
Price
$2,699
Color:White
In stock! Usually ships within 24 hours.

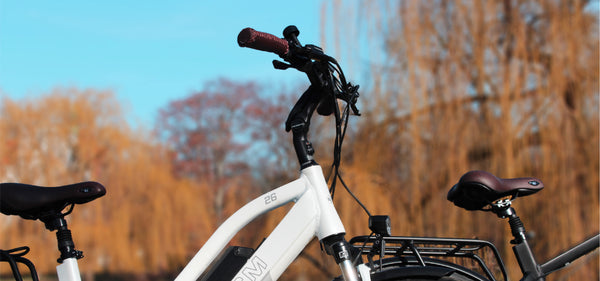

Inspired by the Fashion Capital of Europe the NCM Milano Max is designed to ride as elegant as it looks. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat post for improved comfort. The low-top tube makes the bike sturdy and strong yet comfortable and easy to mount whilst providing additional protection to the battery.





BIKE COMPONENTS

Frame: Alu. 6061, 480MM

Suspension Fork:  ZOOM ARIA 106 26 / 28

Brake: F: Tektro Disc Brakes, MD-M280, R: Shimano Roller-Brake

Freewheel: Shimano, 18T x 3/32

Tire: Shwalbe Marathon, 28×1.5

Saddle: Selle Royal, Gel Saddle, Brown

Stem:

Crank: Bafang, MAX, 38T x 3/32

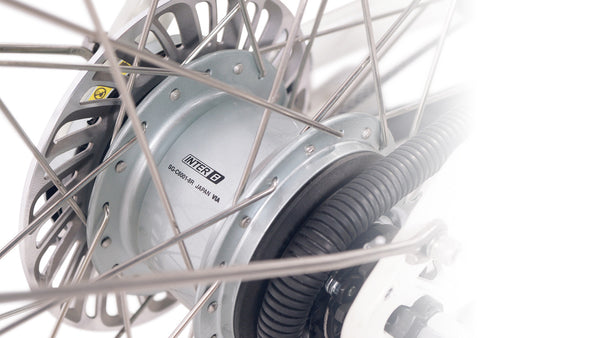

Shifter: Shimano, Nexus 8 gear (hub gear)

Derailleur: Shimano, Altus RD-M310

Chain:





ELECTRIC COMPONENTS

Battery: DEHAWK i5-3616P, 36V 16AH, 576WH

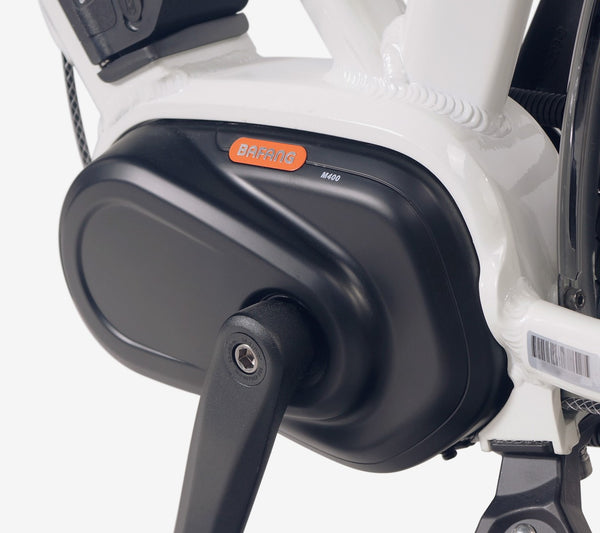

Motor: Bafang MAX Mid drive motor, 36V 250W, 25KM/H

Controller: Das-Kit, CT-i5, 36V18A

Charger: DC362DE 36V 2A

Display: Bafang MAX C966, LCD Display

Front Light: Spanninga, KENDO, 36V, 30Lux

Rear Light: Spanninga, Solo





WEIGHT

Net Weight (with battery): 27.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg
Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

User Manual

NCM Milano Max User Manual

Highlighted Features

supplied with a high output power

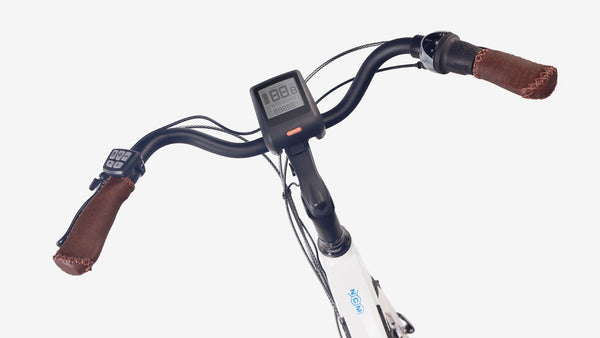

ERGONOMIC BICYCLE GRIPS

Light up your road

Product Specifications

BIKE COMPONENTS

Frame: Alu. 6061, 26"*17.3 inches / Alu. 6061, 27.5"*18.9 inches

Suspension Fork: Suntour, NEX-HLO

Brake: Hydraulic Disc Brakes

Freewheel: LY, 8 Speed, 11-32T

Tire: Schwalbe, Marathon/Big Ben

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R:SL-M315-8R, 8 Speed

Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4816, 48V 16Ah, 768Wh, with an USB Port

Hub Motor Rated / Peak Power: Das-Kit, X15, 48V 500W / 900W

Controller: Das-Kit, CT-i5, 48V18A

Charger: Das-Kit, 48V3A

Display: Das-Kit, C7

Front Light: Kendo, 48V, 30 Lux

Rear Light: DR009, AAA*2

WEIGHT

Net Weight (with battery): 59.0 lbs

Battery Weight: 9.1 lbs

Max Load (driver+bike): 308.0 lbs
