An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their e-bike can handle whatever they throw at it.



BIKE COMPONENTS

Frame: Alu. 6061, 27.5"*480MM

Suspension Fork: RST, OMEGA-TNL-27.5, with Hydraulic Lock System

Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor

Freewheel: LY, 8 Speed, 11-32T, Silver

Tire:  Schwalbe, Smart Sam 27.5×2.35

Saddle: Selle Royal, Lookin-A200UR, Black

Stem: Promax, MA-579

Crank: Das-Kit, 52T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver



ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4819, 48V19AH, 912WH with TAG Technology

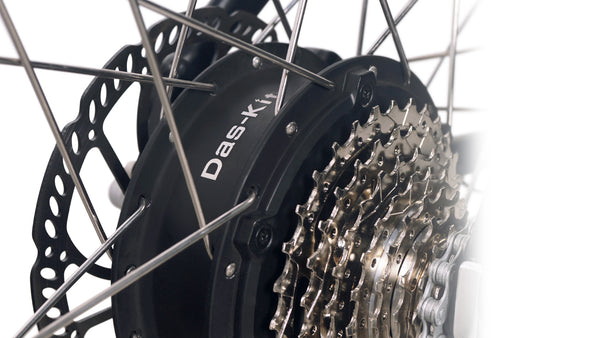

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25kM/H

Controller: Das-Kit, T7+, 48V 18A

Throttle: Das-KIt, T6

Charger: Das Kit, 48V 3A

Display: Das-Kit, C8, with USB

Front Light: LED, 48V, 70Lux

Rear Light: LED, 3V, 2xCR2032



WEIGHT

NCM M7 27.5":

Weight (without battery): 22.5KG

Battery Weight: 4.8KG

Max Load (rider+bike): 125KG
Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

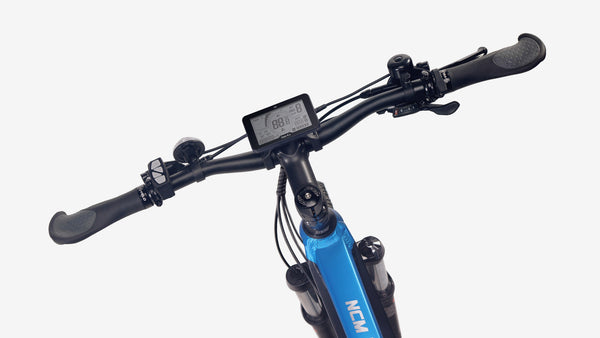

HANDLEBAR

SUPPLIED WITH A HIGHOUTPUT POWER

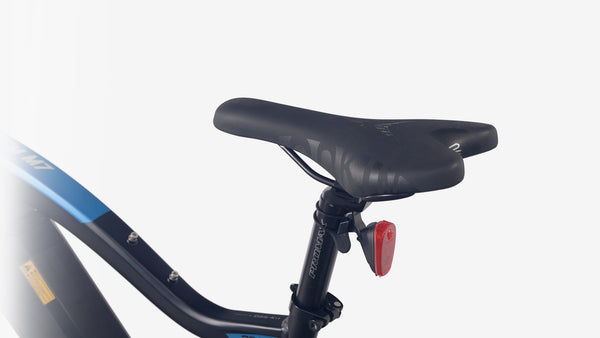

ERGONOMIC SADDLE

Product Specifications

BIKE COMPONENTS

Frame: Alu. 6061, 27.5"x480mm

Suspension Fork: RST, OMEGA-TNL-27.5, with hydraulic lock system, Magnesium

Brake: F: Das-Kit, hydraulic disc brake, DK-100E, 180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100, 180mm rotor

Freewheel: 8 Speed, 11-32T

Tyre: Schwalbe, Smart Sam, 27.5"x2.35, Black

Saddle: Selle Royal, Lookin-A200UR, Black

Stem: Promax, Alu.MA-471

Crank: Das-Kit, 46T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology

Motor: Das-Kit, X15, rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, T7, 48V 18A

Charger: Das-Kit, 48V 3A

Display: Das-Kit, C8, with USB

Front Light: DH007Plus, 48V, 70Lux

WEIGHT

NCM M7 27.5":

Weight (without battery): 22.5KG

Battery Weight: 4.8KG

Max Load (rider+bike): 125KG
