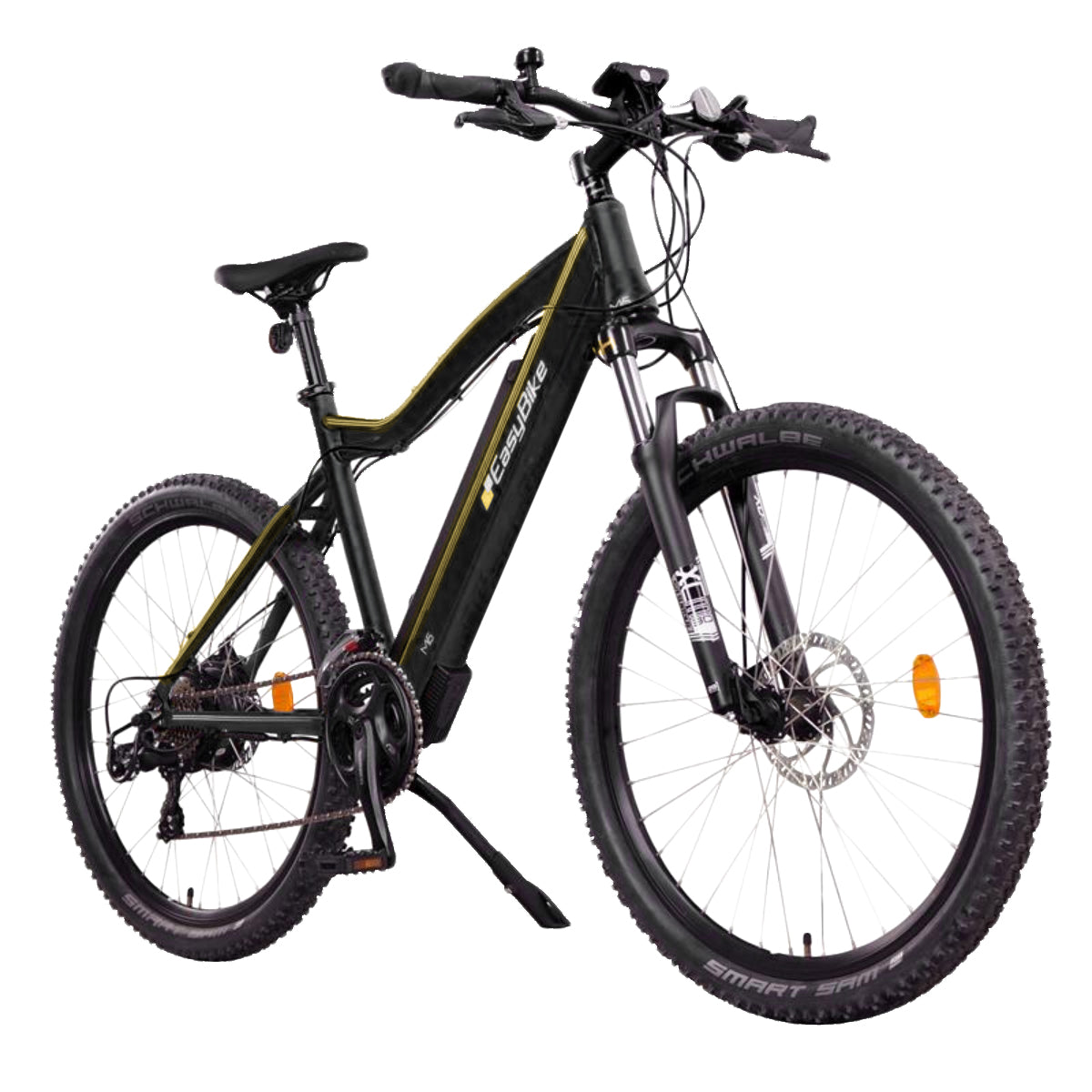

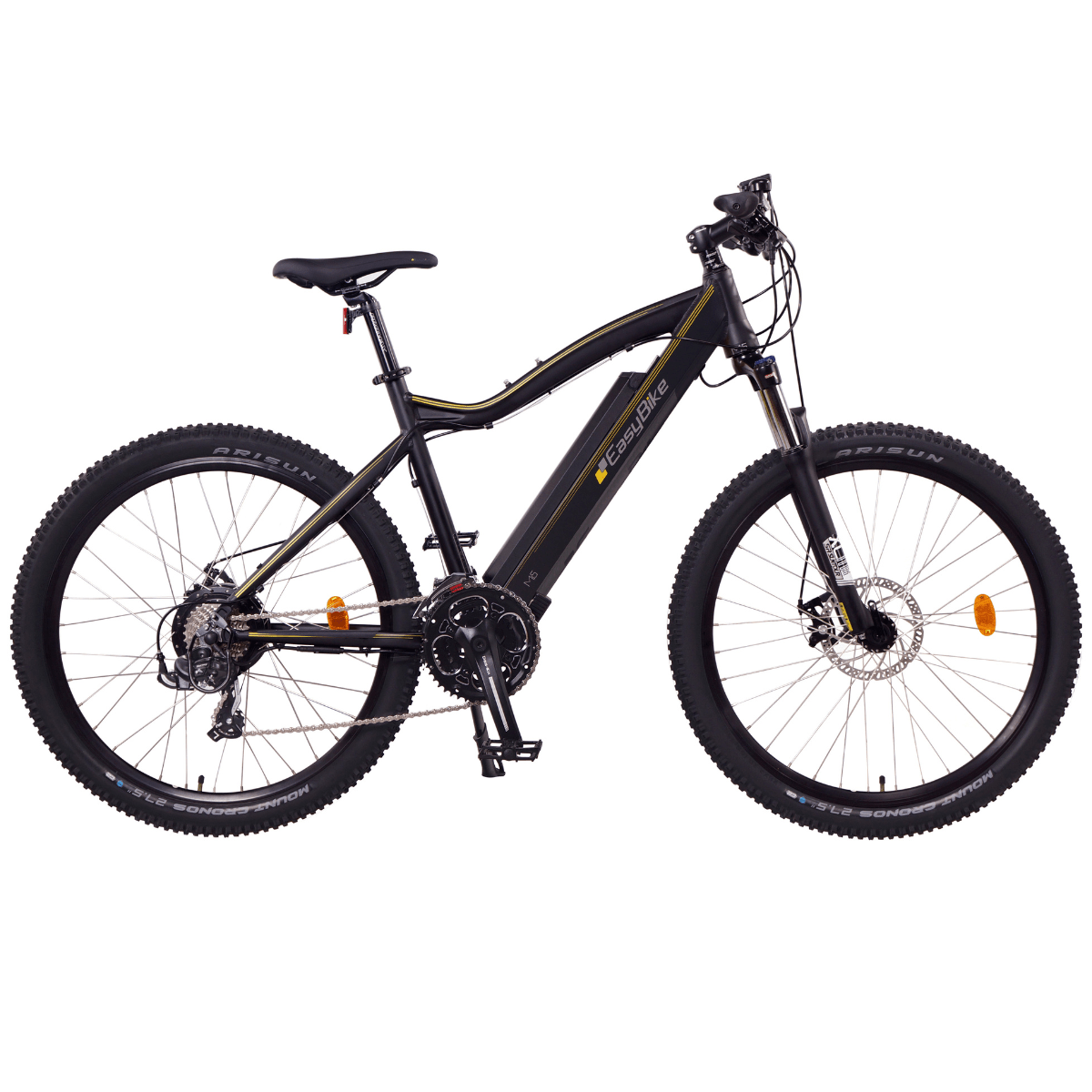

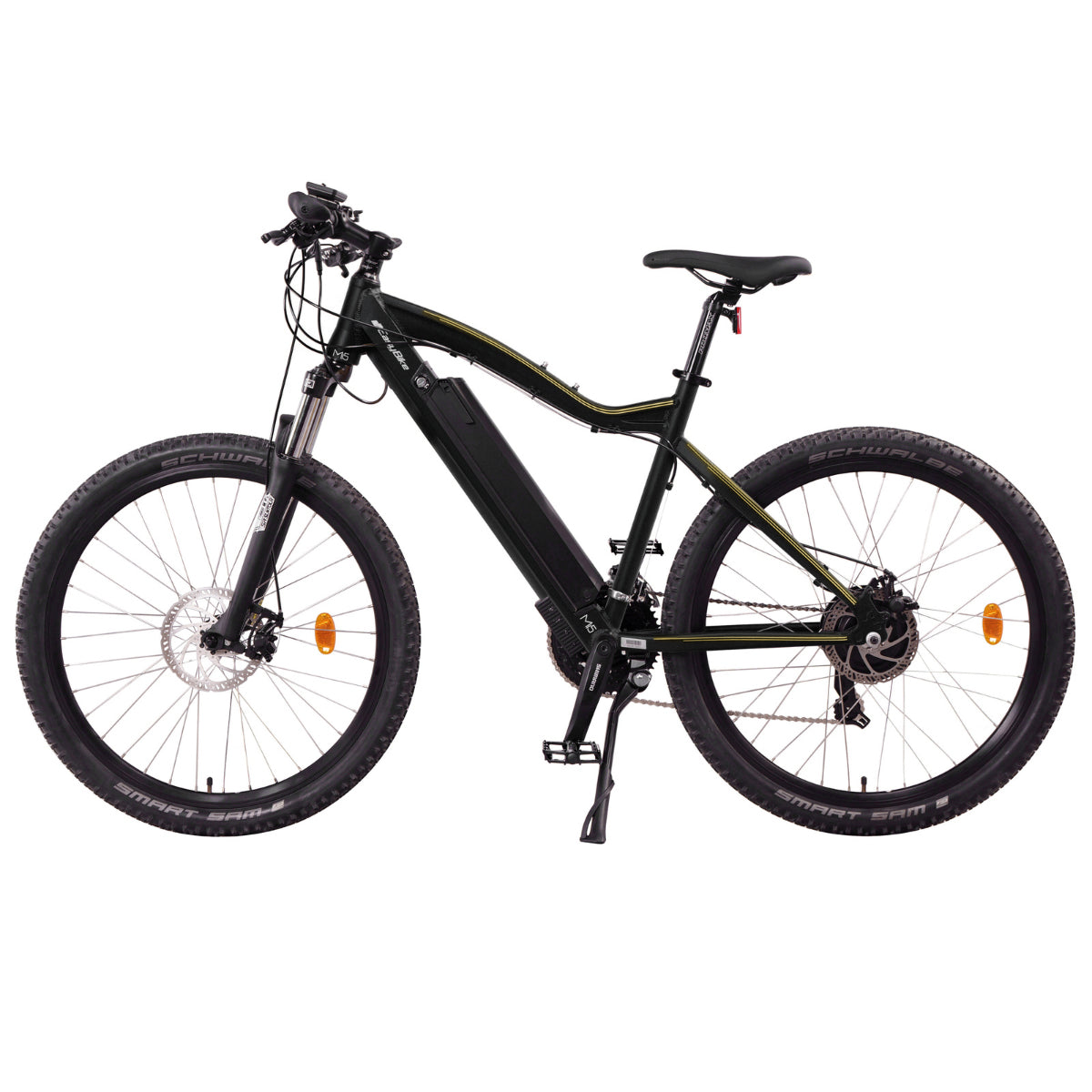

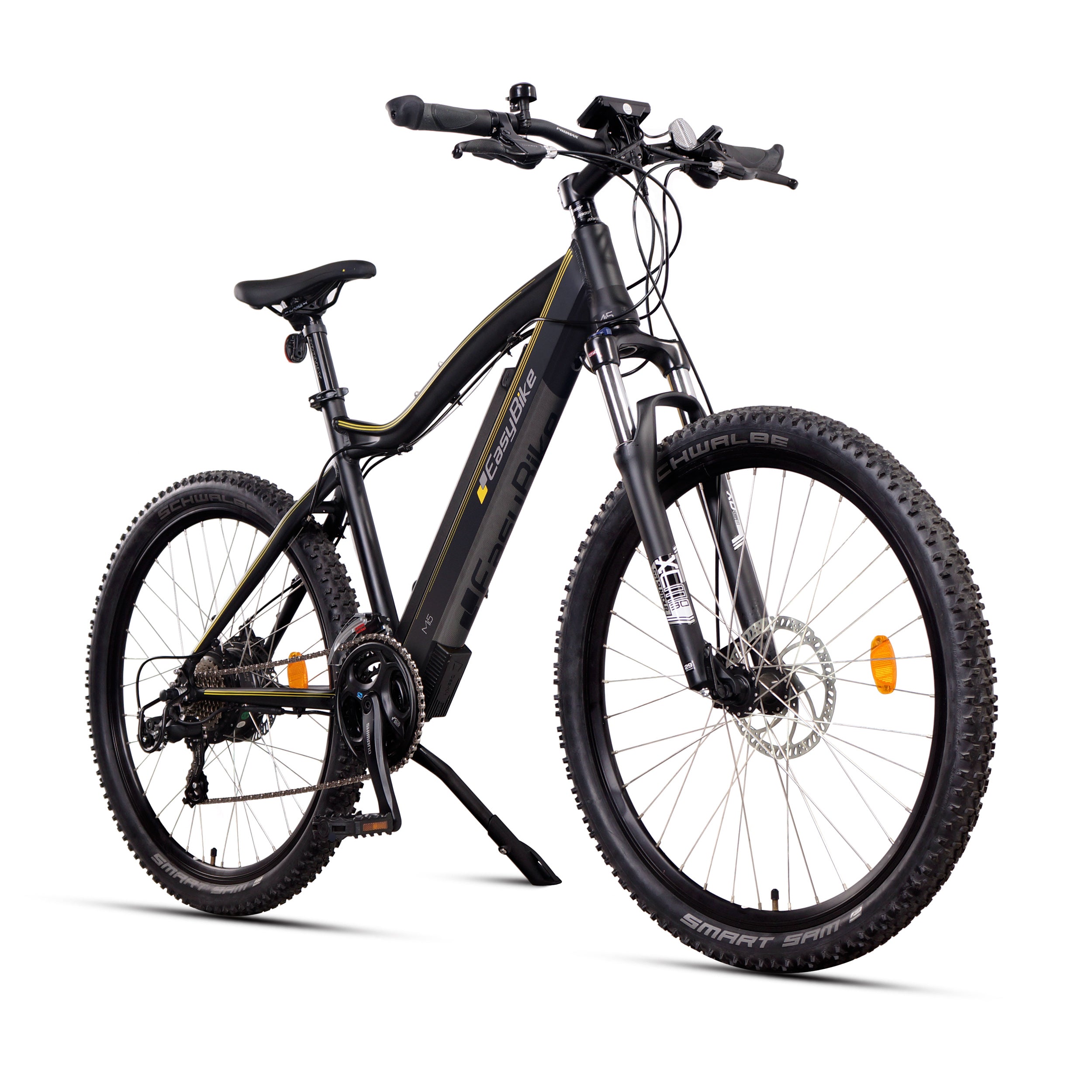

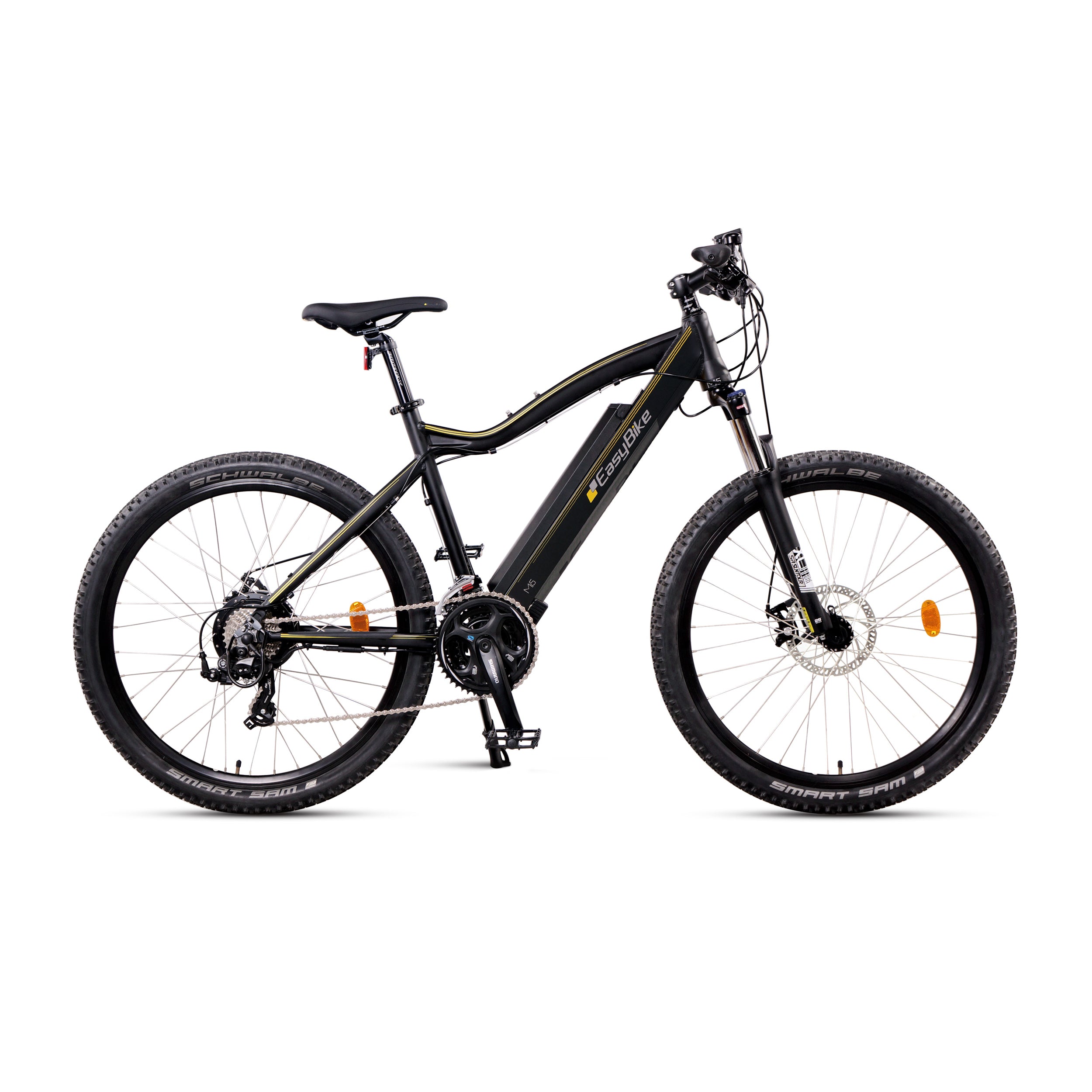

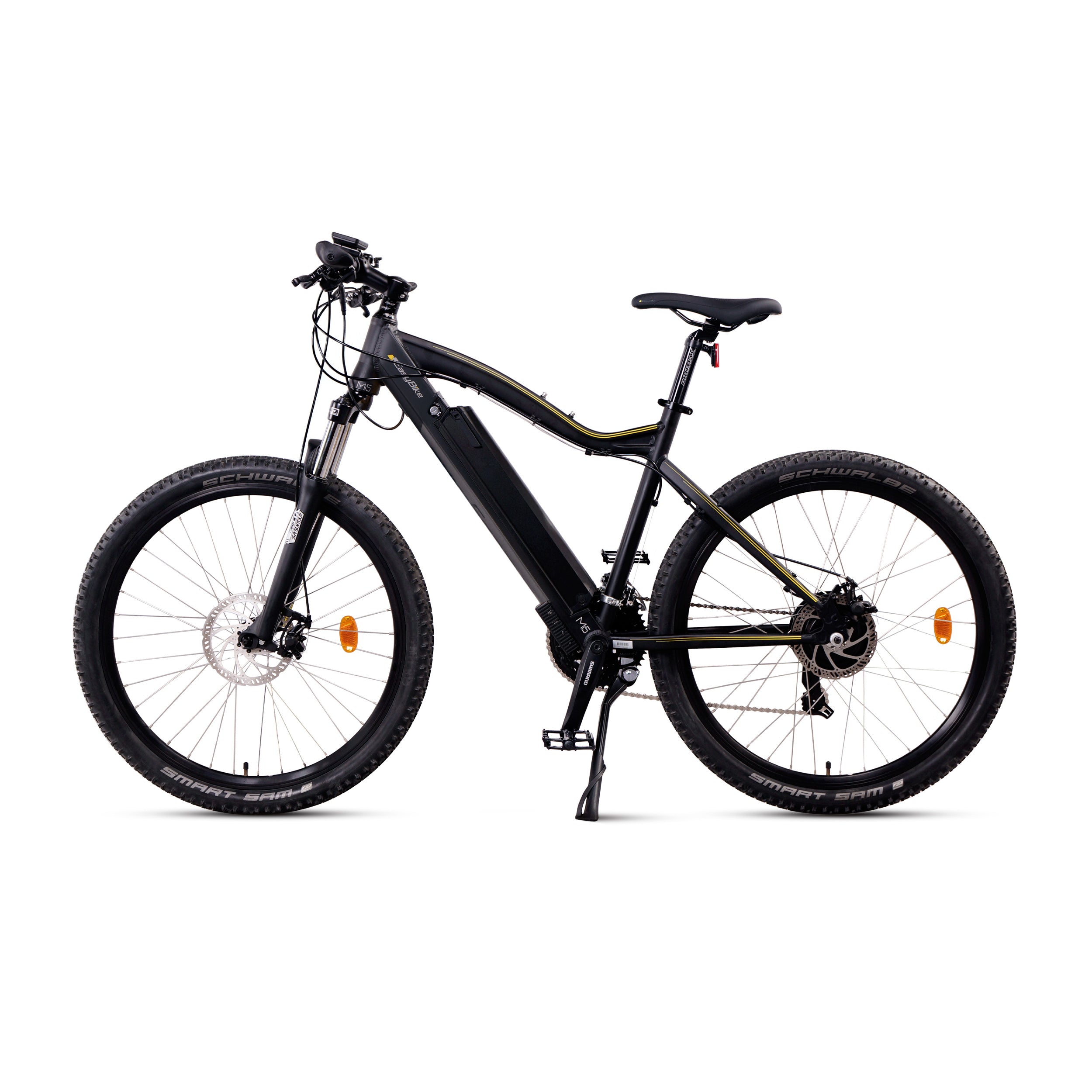

Rugged and capable, the NCM EASYBIKE Mi5 is hugely versatile. Focusing on usability and capability, this E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

BIKE COMPONENTS

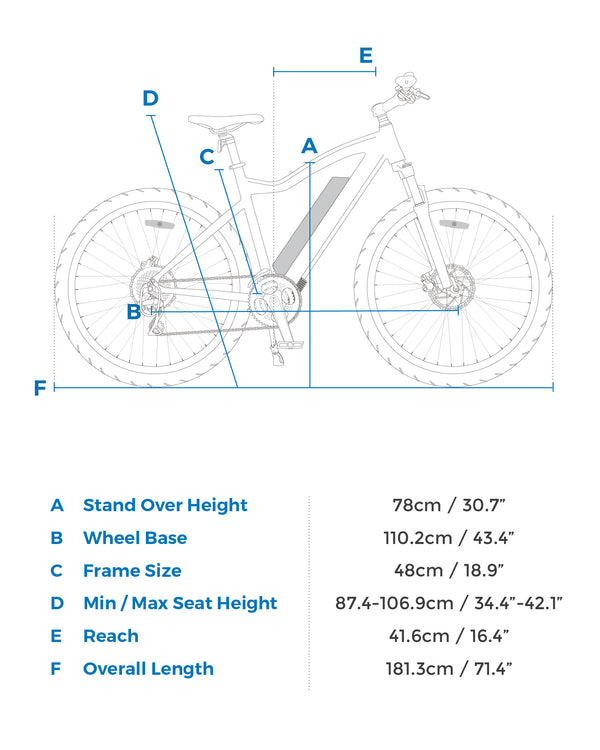

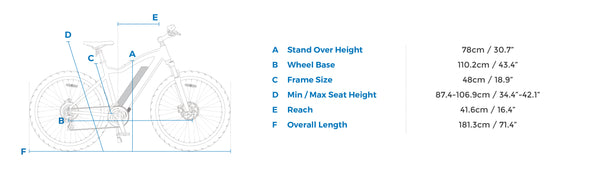

Frame: Aluminium 6061, 27.5"*480MM

Suspension Fork: Suntour, XCM -HLO-27.5, with suspension

Brake: Tektro Mechanical Disc Brakes

Freewheel: Shimano Altus 7 speed

Tire: Schwalbe/Arisun, 27.5"*2.35

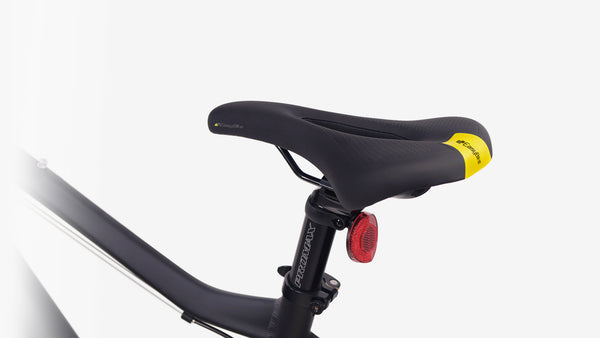

Saddle: VELO, with "EASY BIKE”logo

Crank: Shimano, Altus M311

Shifter: Shimano, Altus, F: M315-L, 3-Speed; R: M315-7R, 7-Speed

Front Derailleur: Shimano, Altus, AFDM310L6C

Rear Derailleur: Shimano, Tourney, RDTY500D

ELECTRIC COMPONENTS

Battery: Das-Kit, I5, 36V 13Ah, 468Wh with USB Port

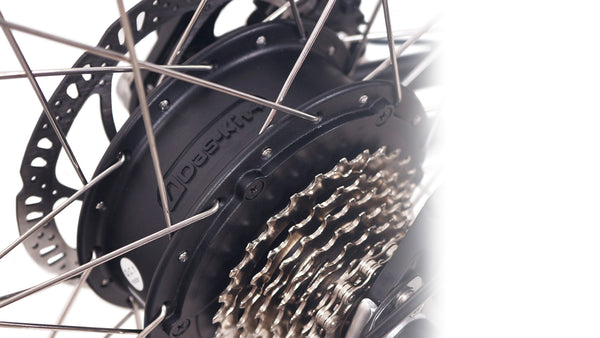

Motor: Das-Kit, X15, Rear drive motor, 36V 250W, 25KM/H

Controller: Das-Kit, CT-D5-44, 36V 15A

Charger: 36V 2A

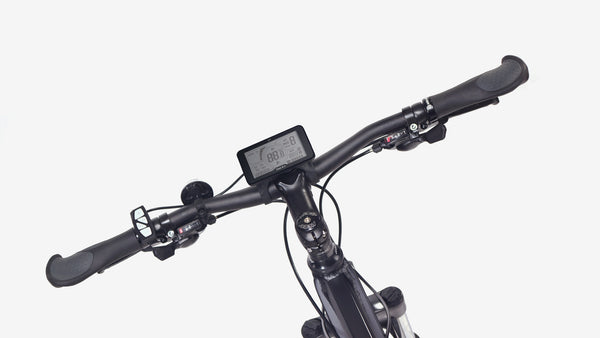

Display: Das-Kit, C7BB, LCD, 6 Assistance levels

Front Light: Cateye, Front reflector

Rear Light: Cateye, Rear reflector

WEIGHT

Net Weight (with battery): 25.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 125kg
