Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]
Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]
Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]
Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]
Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]
Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]
Click image to open expanded view

Das-Kit E-Bike, Pedelec 48V 13Ah 624Wh Battery Conversion Kit + Carrier + Charger [Black]

Sale price
$419
List price
$599
You save
$180 (31%)
In stock! Usually ships within 24 hours.
Pickup currently unavailable at Electric Bikes Superstore (NCM Partner Store)
Check availability at other stores

Specification:

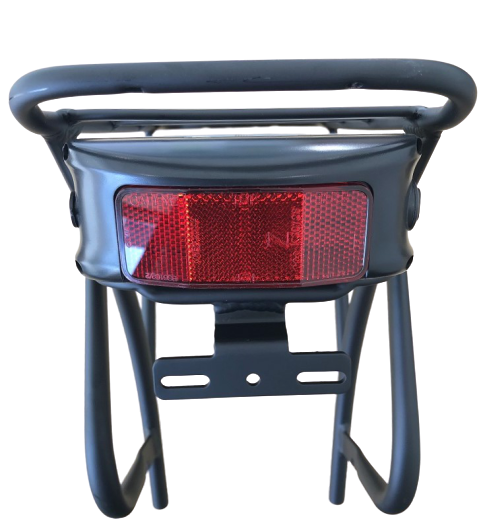

  • Rear Carrier rack, Battery and rear light kit

Suitable for the following bike type/models

  • Battery conversion fits conversion kits for bikes with eyelets/mounts for a rear rack

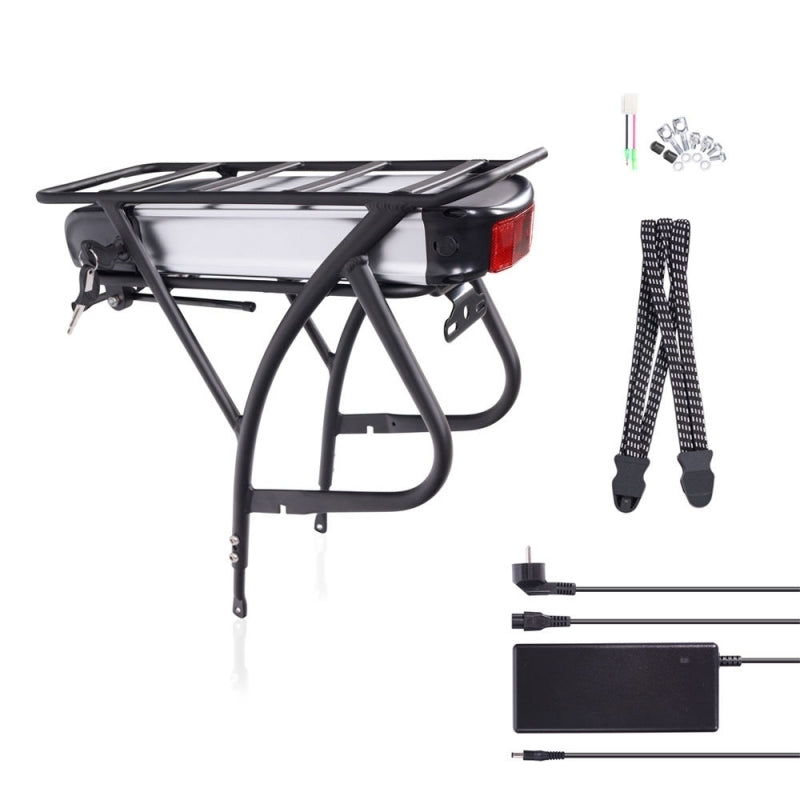

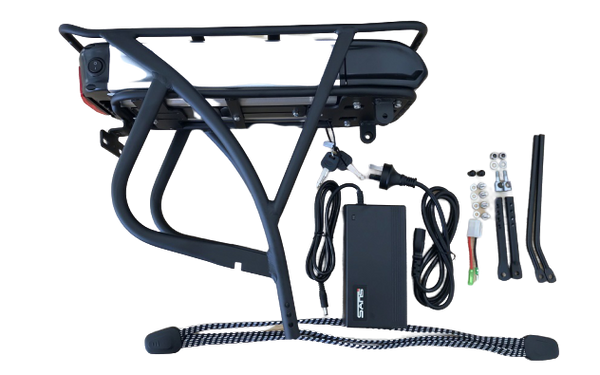

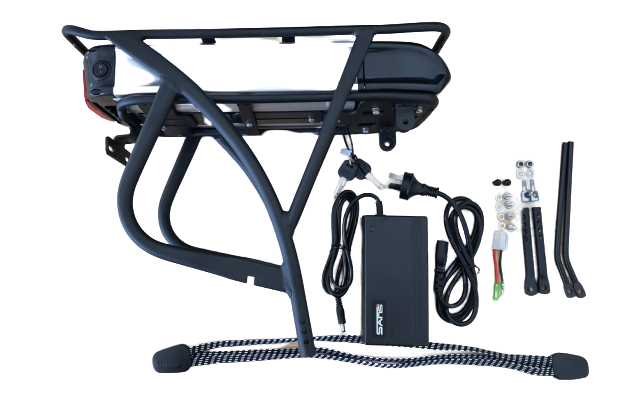

Package Includes:

  • 1x Rear Rack
  • 1x Rear Light

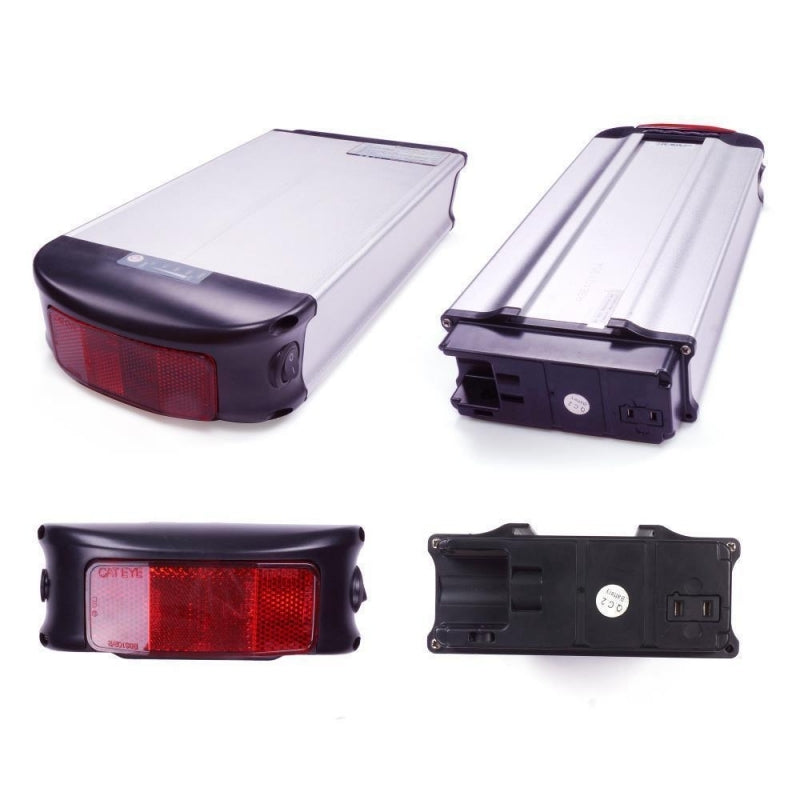

  • 1x Battery
  • 1x Fitting kit
  • 1x Keys

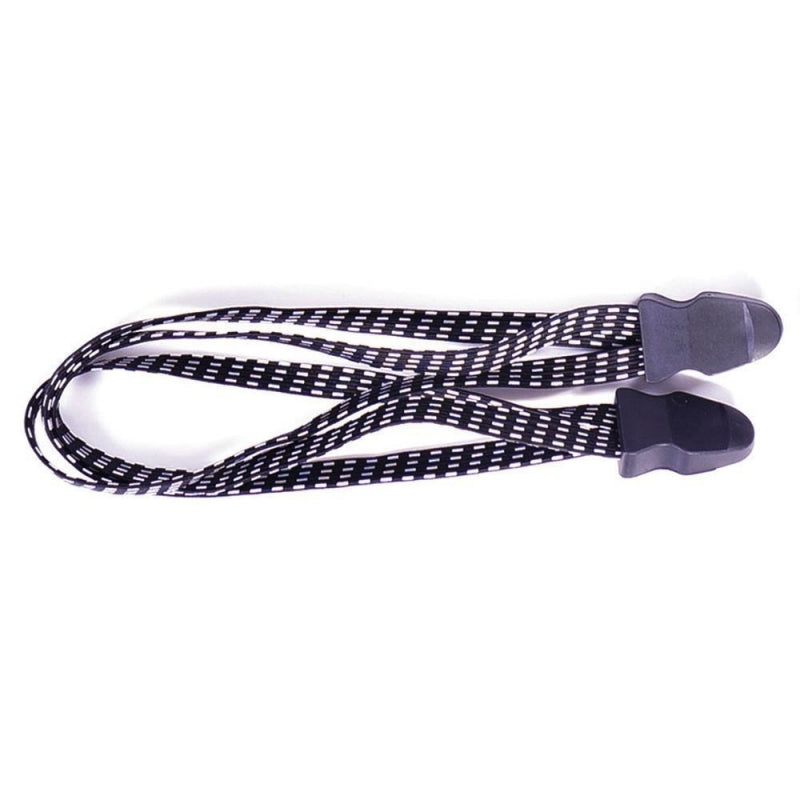

  • 1x Bungy
Model

compatibility		 BKR24813SB

Compatible with 26 "and 28" bicycles
Voltage

Capacity

Range

Watt hours		 48V

13Ah

about 90-120km

624Wh
cell NiCoMnO2 18650-220 Lithium Ion DLG
internal resistance = 220mOhm
Minimum capacity 10Ah
Standard charge Constant current 2A, constant voltage 54.6V, 100mA cut-off
Standard Relief Constant current 5A, final voltage 35.75V
cycles 500,> 60% capacity
Max. Charge current 4A
Max. Discharge current 15A
Overvoltage protection 40 ± 10A (15ms)
Luggage Rack

Controller

Security

Luggage Rack

Lighting

Charger		 Rubber band approx. 58cm

Controller box and rail preassembled

Battery is lockable including key

Lightweight aluminum carrier

Reflector in red

54.6V 2A
Charging Chill 0-45Celsius
Operation Chill 0-60Celsius
storage Temperature (15-35Celsius) At Humidity (45-75%)

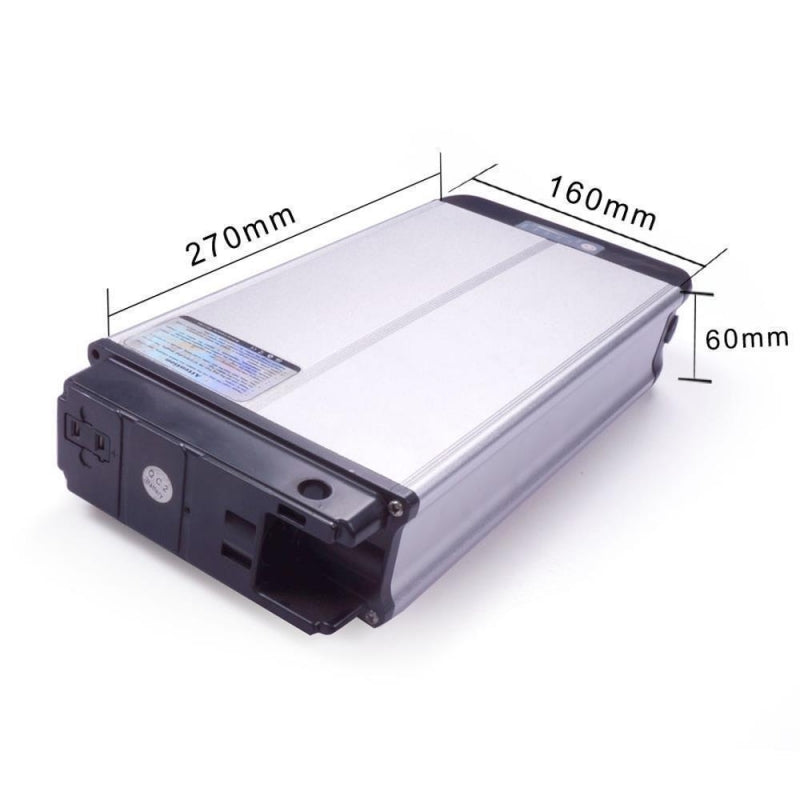

Battery Dimensions

Luggage Rack Dimensions

Total Weight		 Length x width x height

AM: 360 x 160 x 70 mm

GM: A = 440 x 190 x W = 430 mm

approx. 5,9kg
